En Darmstadt, Alemania, STOE & Cie GmbH desarrolla y fabrica sistemas de Difractometría de Rayos X para polvos así como Sistemas de Difractometría de Cristal Único, todos con excelente precisión así como software de control y evaluación para cristalógrafos, químicos, científicos en materiales y farmacéuticos de todo el mundo.



POWDER DIFFRACTOMETRY:

Stadi P

Stadi P Combi
Stadi MP




SINGLE CRYSTAL DIFFRACTOMETRY:

StadiVari
IPDS 2T
IPDS II




PRODUCTOS STOE:

POWDER DIFFRACTOMETRY

STADI P - THE RAPID, COMPREHENSIVE MODULAR SYSTEM WITH UNSURPASSED RELIABILITY

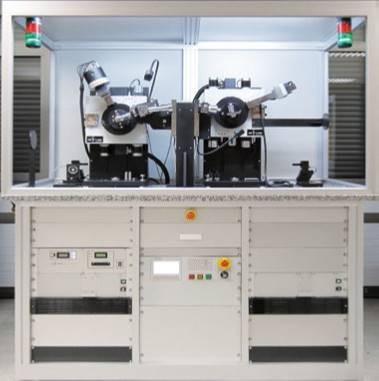

The very reliable, high-precision two circle goniometer is the basis of a whole range of x-ray powder diffraction solutions. Vertically or horizontally mounted, the STADI P can be built-up in Transmission/Debye-Scherrer or Bragg-Brentano geometry: Transmission/Debye-Scherrer, Reflection/ Bragg-Brentano or both. Two STADI P goniometers, either in the same or different configurations, can be mounted in the same cabinet resulting in two completely independent units. Moreover, two goniometers can share one source.

STADI P
STADI P
STADI P / STOE
STADI P / STOE

STOE STADI P COMBI - DIFFRACTOMETER FOR COMBINATORIAL AND HIGH-THROUGHPUT ANALYSIS

Based on the well known STADI P, STOE has developed a new powder diffractometer for high-throughput and combinatorial measurements in transmission geometry. With its newly designed sample stage providing a variable x,y grid for various slide-in sample holders, eg. for up to 96 different samples, the STADI P COMBI offers highest efficiency combined with all the advantages of the STADI P system.



STADI P COMBI
STADI P COMBI

STOE STADI MP


THE UNIQUE MULTIPURPOSE POWDER DIFFRACTOMETER OFFERING THREE GEOMETRIES

STOE has developed a new type of diffractometer which is more flexible than any existing system but without any loss in performance. STOE’s STADI-MP combines the two most common diffractometer configurations: Transmission-/Debye-Scherrer and Bragg-Brentano geometry with a set-up for micro-diffraction.

STADI MP
STADI MP

SINGLE CRYSTAL DIFFRACTOMETRY

STOE STADIVARI


THE FASTEST AND MOST FLEXIBLE WAY TO EXPLORE RECIPROCAL SPACE.

With the possibility to be set-up vertically as well as horizontally, the STADIVARI increases its scope of application.

The STADIVARI can be used for single crystal and powder diffraction. The Open Eulerian Cradle offers enough space to add high pressure cells, high- or low- temperature devices or other chambers.

In the dual beam setup, all combinations of tubes and microfocus BDS are possible: two sealed tubes, one sealed tube and one microfocus BDS or two microfocus BDS.

As the youngest member of the long line of STOE diffractometers, the STADIVARI is fully integrated in the well-established STOE X-Area software package.

STADI VARI
STADI VARI
STADI VARI PILATUS
STADI VARI PILATUS

STOE IPDS 2T


COMBINING HIGH ANGLE DATA WITH HIGHEST DATA QUALITY AND RELIABILITY

STOE’s IPDS 2T combines all the achievements of the IPDS II with the possibility to turn the whole goniometer around the Θ axis to an angle of up to 60° yielding a 2Θmax of 137°! This additional axis makes the IPDS 2T a diffractometer of unique versatility. Featuring also the dual beam capability for using two different wavelengths on the same instrument the structure solution of small molecules and proteins as well as electron density determination and powder investigations are no challenge for the IPDS 2T.

IPDS 2T
IPDS 2T

STOE IPDS II


STATE OF THE ART DIFFRACTOMETER WITH EXTREMELY SENSITIVE AND RELIABLE IMAGING PLATE TECHNOLOGY

Unparalleled reliability, built to serve all scientific needs: e.g. small molecules, proteins, electron density measurements. Full accessibility of the sample environment for easy adaptation of high and low temperature attachements as well as high pressure cells.

IPDS II
IPDS II
